Set of options:
1》Barebone(Sealed Original Packaing)
2》Crucial DDR4 3200MHz 16GB(8×2)+Solidigm PCIe 4.0 512GB SSD+Pre-install windows 10/11
3》Crucial DDR4 3200MHz 32GB(16×2)+Solidigm PCIe 4.0 1TB SSD+Pre-install windows 10/11
4》Crucial DDR4 3200MHz 32GB(32×2)+Solidigm PCIe 4.0 2TB SSD+Pre-install windows 10/11
5》Crucial DDR4 3200MHz 32GB(16×2)+Solidigm PCIe 4.0 1TB SSD+GTX 1660 6G PE Card+Pre-install windows 10/11
6》Crucial DDR4 3200MHz 32GB(32×2)+Solidigm PCIe 4.0 2TB SSD+RTX 3060 6G PE Card+Pre-install windows 10/11
7》Crucial DDR4 3200MHz 32GB(32×2)+Solidigm PCIe 4.0 2TB SSD+RTX 3080 8G PE Card+Pre-install windows 10/11

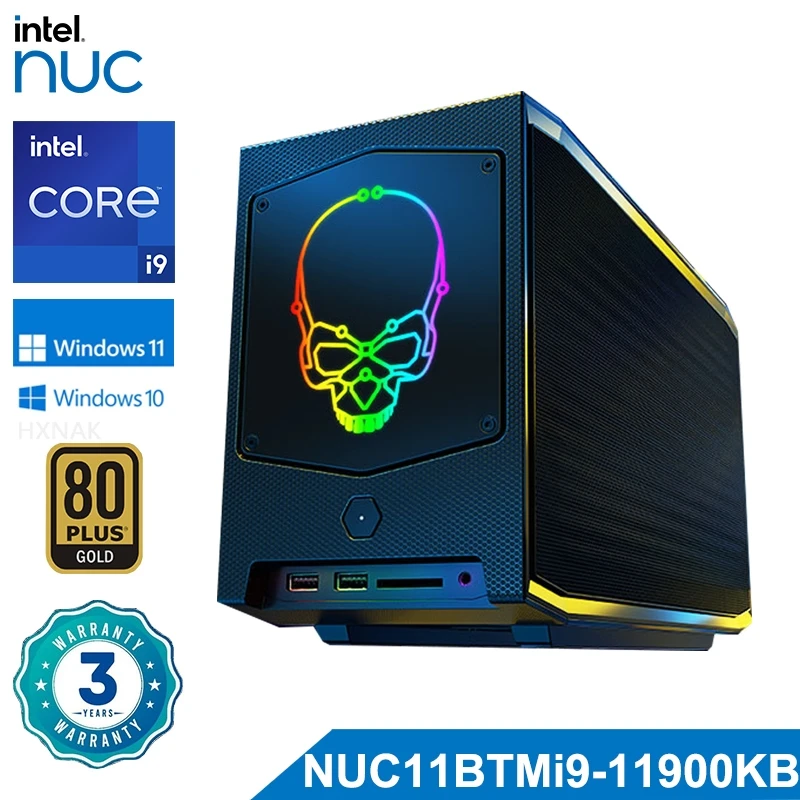

Product Collection:Intel NUC Kit with 11th Generation Intel Core Processors
Processor Included:Intel Core i9-11900KB Processor (24M Cache, up to 4.90 GHz)
Total Cores:8
Total Threads:16
Processor Base Frequency:3.30 GHz
Max Turbo Frequency:4.90 GHz
Memory & Storage
Max Memory Size (dependent on memory type):64 GB
DDR4 3200MHz 1.2V SO-DIMM
DDR4 3200 MHz 1.35V SO-DIMM – XMP is required to enable 1.35V memory
Max of Memory Channels:2
Max Memory Bandwidth:51.2 GB/s
Max of DIMMs:2
Processor Graphics
Integrated Graphics :Yes
Graphics Output:2x Thunderbolt 4, HDMI 2.0b
Displays Supported :3
Expansion Options
PCI Express Configurations:

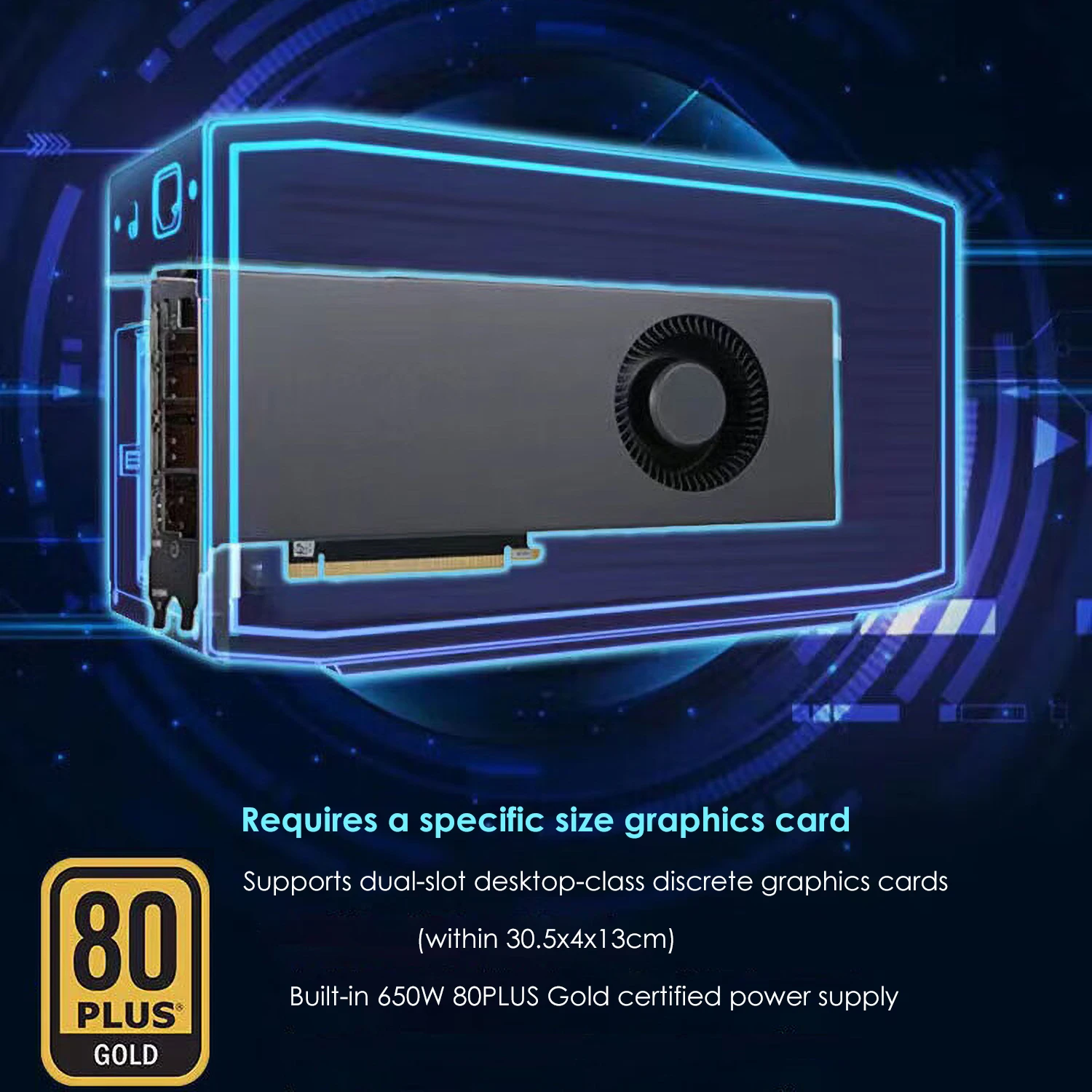

2x M.2 PCIe X4 Gen3 slots (PCH), 2x M.2 PCIe X4 Gen4 slots (CPU); Double-wide PCIe X16 Gen4 (CPU) slot, PCIe X4 Gen4 (CPU) slot, 12″ max card length
Removable Memory Card Slot:SDXC with UHS-II support
M.2 Card Slot (wireless):Intel Wi-Fi 6E AX210
M.2 Card Slot (storage):2x via PCH + 2x via CPU (NVMe)

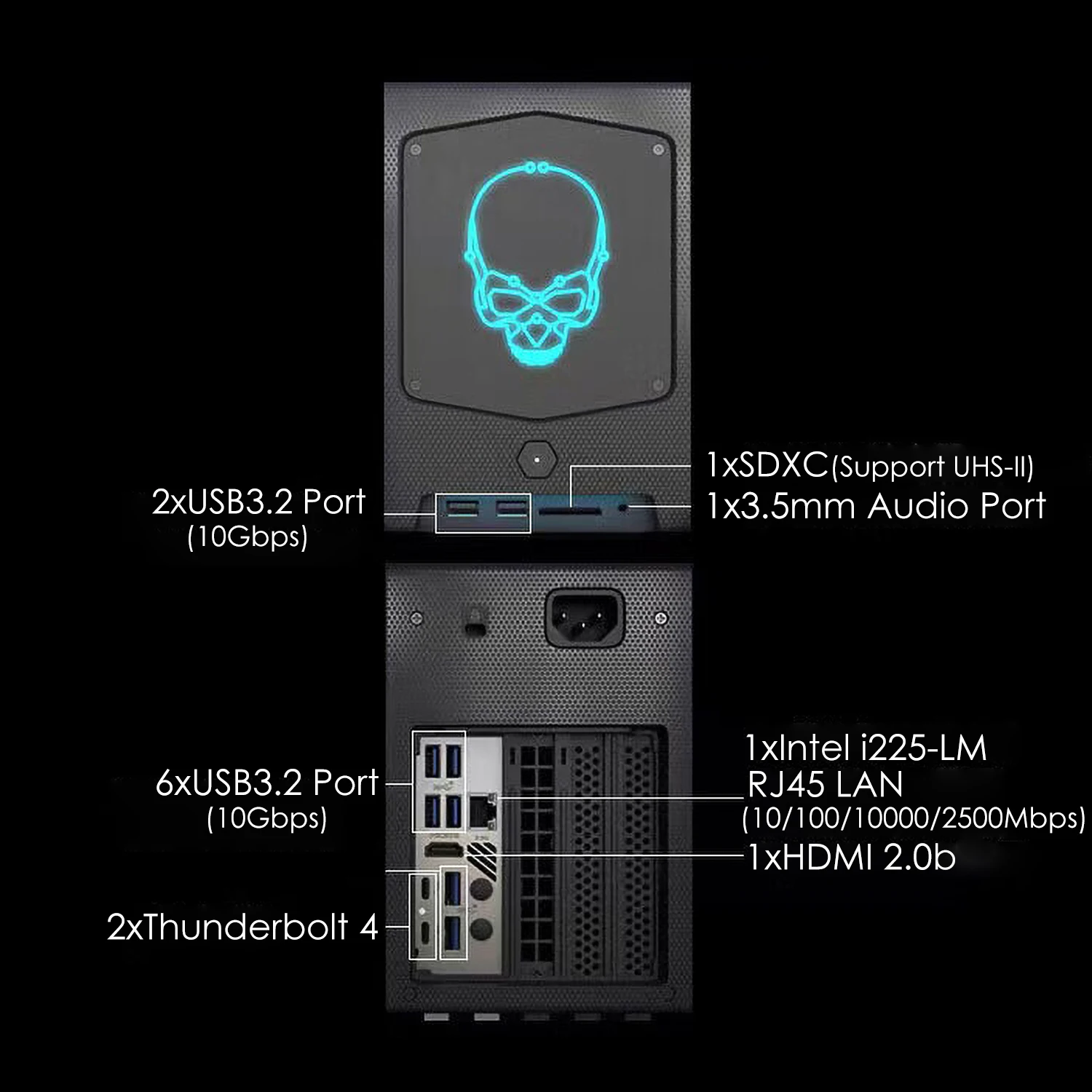

I/O Specifications
USB Configuration:
6x rear USB 3.1g2, 2x Thunderbolt 4 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 3.1 via internal headers, 2x USB 2.0 via internal headers
SATA Ports:2
RAID Configuration:2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel):7.1 digital; L+R+mic (F)
Integrated LAN:Intel Ethernet Controller i225-LM
Integrated Wireless:Intel Wi-Fi 6E AX210(Gig+)
Integrated Bluetooth:Yes
Additional Headers:2x USB2.0, FRONT_PANEL
Thunderbolt Ports:2x Thunderbolt 4
Chassis Dimensions

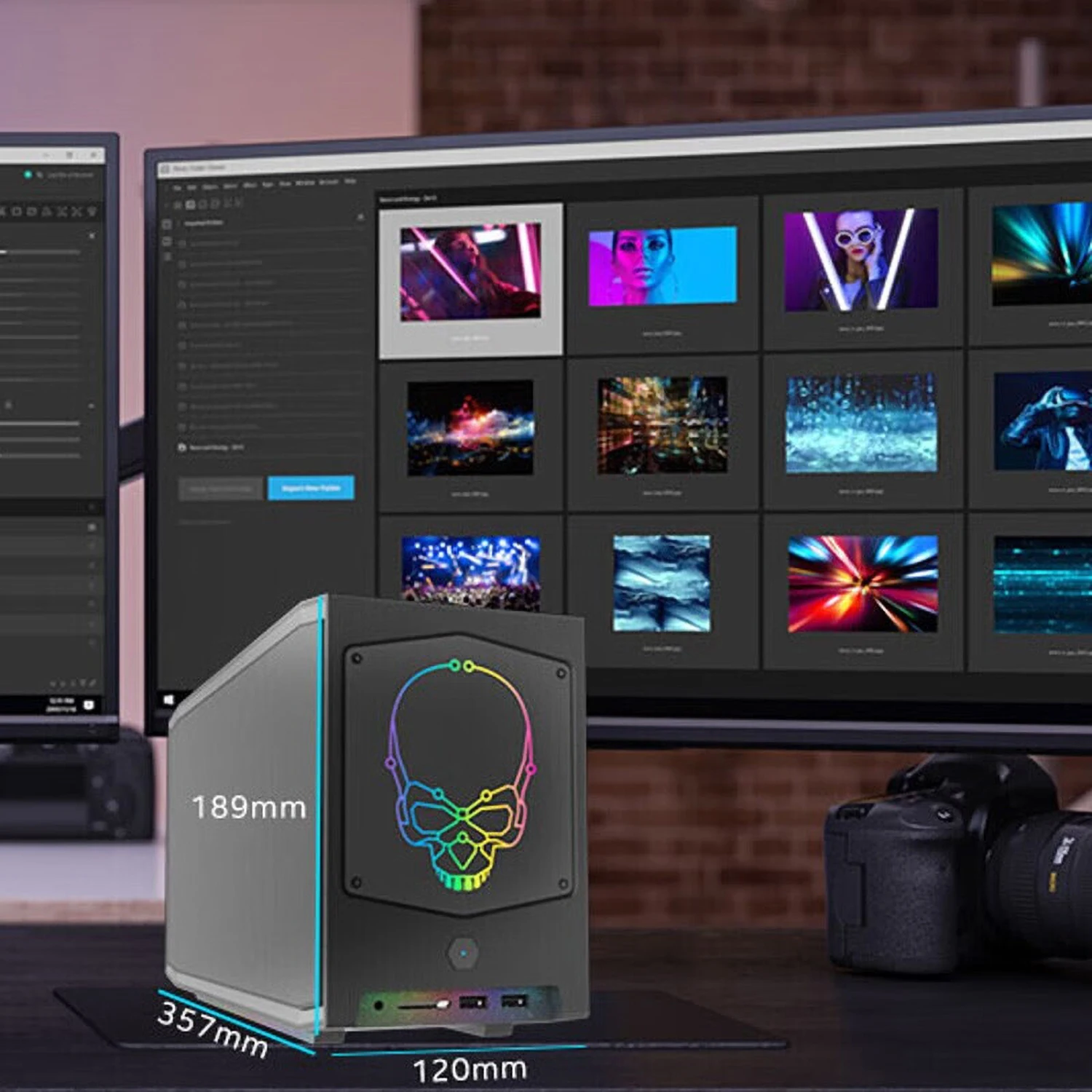

357 x 189 x 120mm(8L)
Weight | 6 lbs |
---|---|
Dimensions | 43 × 27 × 21 in |
Hign-concerned Chemical | None |
Processor Main Frequency | 3.3-4.9 GHz |
Use | Commercial |
Memory Capacity | 32GB |
Hard Drive Capacity | 1TB |
Model Number | NUC11BTMi9 |
Processor Brand | Intel |
Processor Model | Core i9-11900KB |
Type | Mini Desktop, MINI PC |
Graphics Card Type | Integrated Card |
Brand Name | BRENUC |
Origin | Mainland China |
Certification | CE, FCC |
CPU Processor | Core i9-11900KB Processor (24M Cache, up to 4.90 GHz) |
Graphics | Intel UHD Graphics |
Processor | 8 Core 16 Threads 24M Cache |
Memory Type | DDR4 SODIMM Support DDR4-3200GHz Up to 64GB |
Storage | M.2 2280 NVMe SSD |
Windows System | Window 10/11 |
Power adapter | 650W 80Plus |
Display Port | 1 x HDMI 2.0b, 2 X Thunderbolt 4 |
ITX Case Size | 357 x 189 x 120 mm (~8L) |
